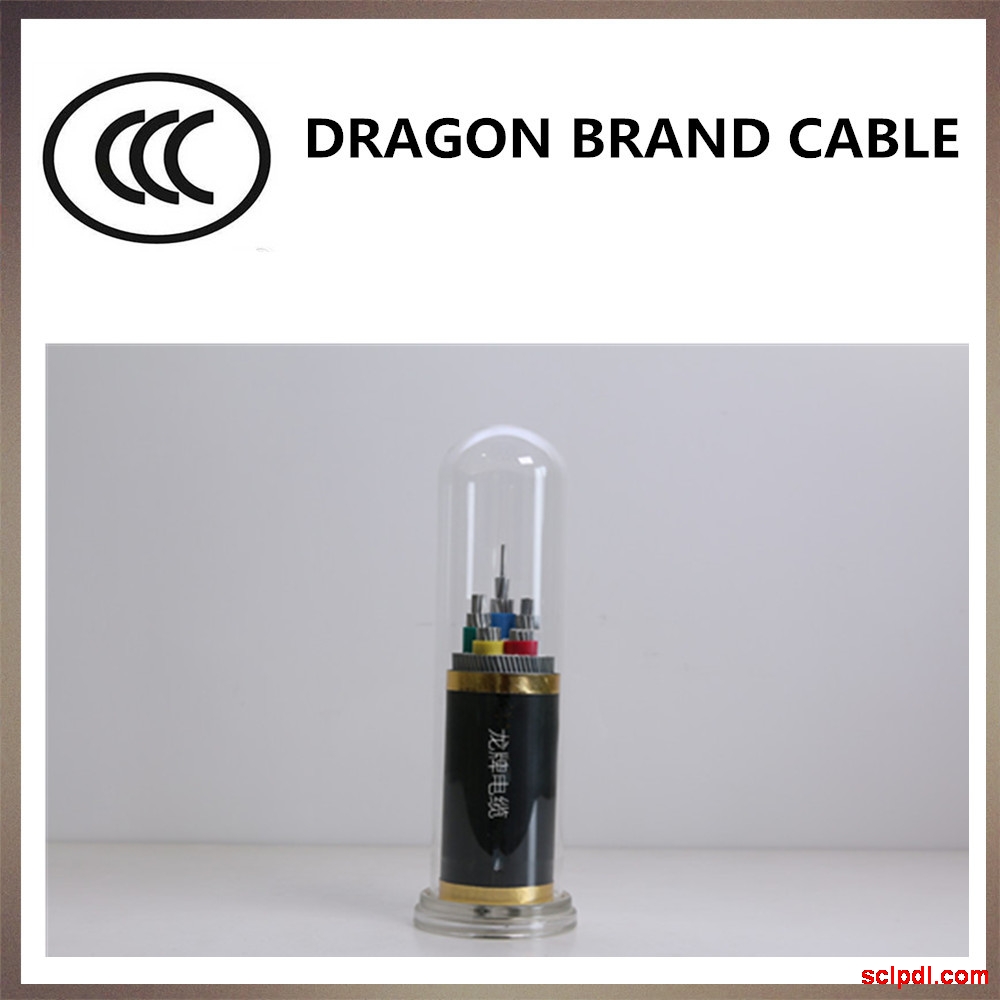

VV22, VLV22, Cu/PVC/STA/PVC, Al/PVC/STA/PVC |
? |
||
|
Voltage?? |
??0.6/1 kV |
? |
|
|
Cores?? |
??1C, 2C, 3C, 4C, 5C, 3C+1E,4C+1E, 3C+2E |
? |
|
|
Range of Nominal cross section?? |
??1.5 mm2?～?630 mm2 |
? |
|
|
Application?? |
??It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding. |
? |
|
|
Standard?? |
I??EC 60502, BS 7870, GB/T12706 |
? |
|
|
Constructions?? |
Conductor?? |
Class 1/2 annealed bare copper solid or strands |
? |
|
Insulation?? |
??PVC |
? |
|
|
Armour?? |
??STA (Remark: for single core the armour should be ATA or SSTA) |
? |
|
|
Sheath?? |
??PVC or PE |
? |
|
|
Max. Operating Temperature?? |
??70 ℃, can be 90 ℃ and 110 ℃ as per requirement |
? |
|
|
Packing?? |
??Wooden drum or as per requirement |
? |
|
|
Production Capacity?? |
??30 kilometer / day |
? |
|
|
MOQ?? |
??1000 meters for small size, 500 meters for big size. |
? |
|
|
Delivery time?? |
??10?～?15 working days |
? |
|
|
Remark?? |
??The cable can be of flame retardance, fire resistance, environment friendly or otherpproperty |
|
|
